Oxygen Equipment

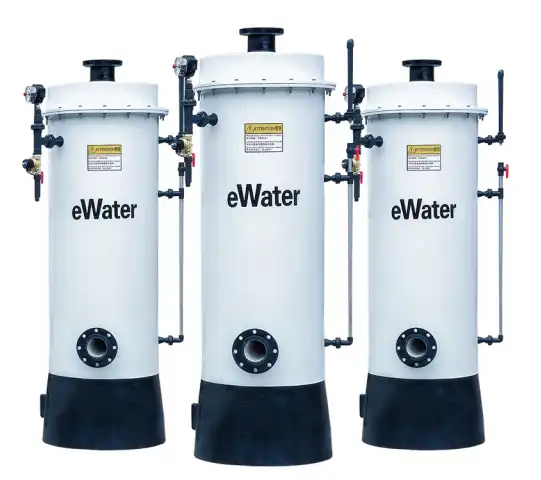

Oxygenation Column
- Excellent resistance to a wide range of chemicals, suitable for use in various environments and oxygenation processes
- With pressure monitoring system and automatic pressure relief solenoid valve, safer and more reliable
- Lightweight and easy to install in oxygenation systems
- Optimize oxygen transfer efficiency,and effectively dissolve oxygen into water upto 36mg/L
| Model | Treatment Capacity (m³/h) | Product Size (mm) | Flange Diameter | Rated Power (watts) |
|---|---|---|---|---|
| EHOC-30 | 30 – 40 | ∅500*2250 | DN80 | 1100 |
| EHOC-80 | 50 – 80 | ∅500*2250 | DN100 | 2200 |

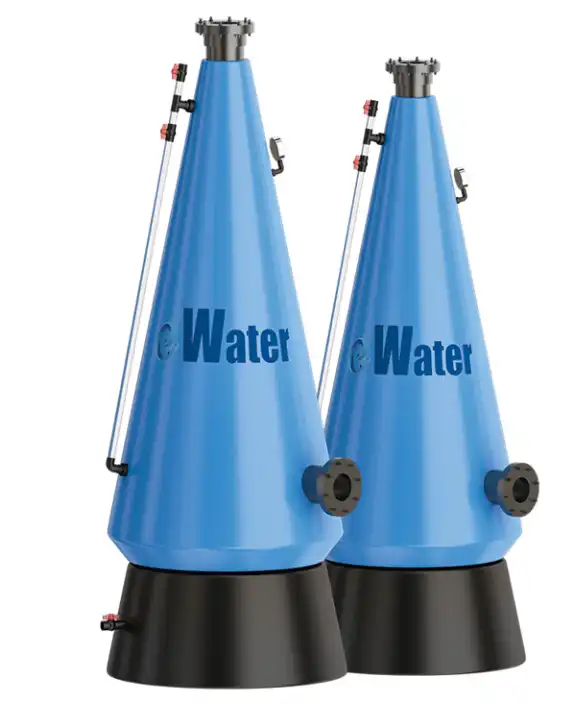

Speece Cone
- Excellent resistance to a wide range of chemicals, ensuring the oxygen cone does not deteriorate or experience chemical damage over time
- Generally more cost-effective compared to other materials like steel or concrete, and efficiency with high oxygen utilization(≥90%)
- Easy to clean, preventing the buildup of biofilm or debris that could impede oxygen transfer
- Optimize oxygen transfer efficiency,and effectively dissolve oxygen into water upto 36mg/L
| Model | Treatment Capacity (m/h) | Product Size (mm) | Flange Diameter | Pressure Resistance (MPa) |
|---|---|---|---|---|
| ESC-30 | 20 – 40 | ∅600*1550 | DN80 | 0.25 |
| ESC-60 | 50 – 70 | ∅860*2250 | DN100 | 0.25 |
| ESC-90 | 80 – 100 | ∅1000*2520 | DN150 | 0.25 |
| ESC-120 | 110 – 130 | ∅1100*2790 | DN150 | 0.25 |
| ESC-150 | 140 – 160 | ∅1200*3050 | DN150 | 0.25 |
Integrated Oxygen Generator
- Built-in air condensation system for more stable oxygen output
- High purity oxygen output with PSA technolgy，typically provide oxygen concentrations of 92% or higher
- Adustable oxygen flow rates to meet specific needs
- Ensure the user’s safty with oxygen purity monitoring, alarms for low oxygen levels or malfunctions, and automatic shut-off in case of emergencies
- Minimize noise disturbance (under 55 dB) for the user and their surroundings
| Model | Prodcution (LPM) | O2 Concentration | Product Size (mm) | Power Supply | Rated Power (watts) |
|---|---|---|---|---|---|
| EOX-10 | 10 | 92 – 95% | 550*600*1100 | 220V/50Hz | 850 |
| EOX-20 | 20 | 92 – 95% | 550*720*1100 | 220V/50Hz | 1700 |
| EOX-40 | 40 | 92 – 95% | 550*1200*1100 | 380V/50Hz | 3400 |
