Drum Filter

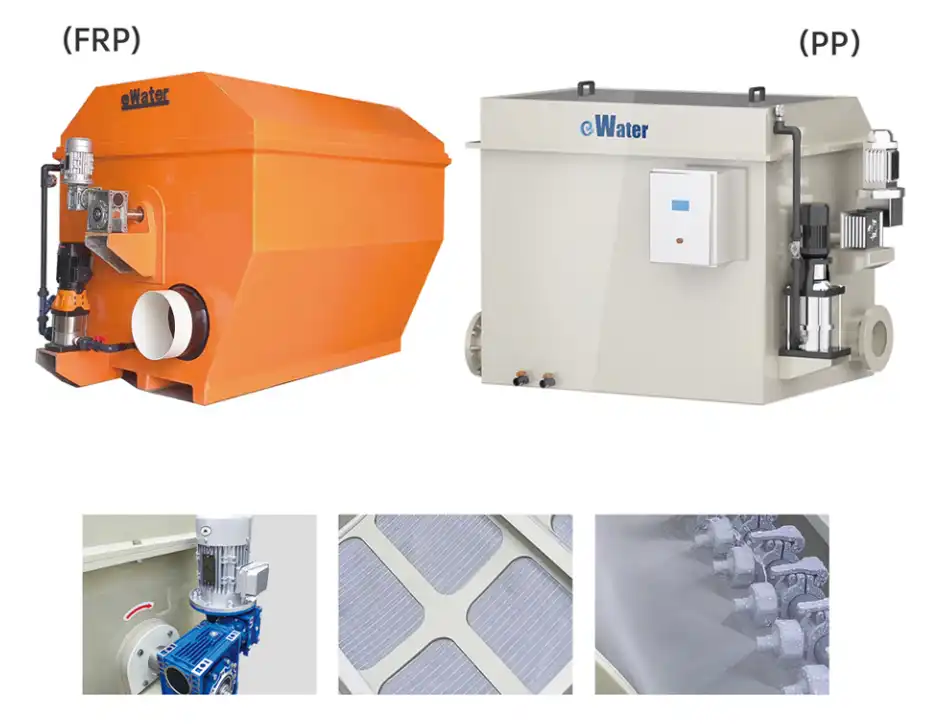

Closed Type Drum Filter
- PP or FRP material available, robust design, durable, and easy maintenance
- Replaceable dual-layer protection SS316L screen for easily rinsing and durable performance
- Detachable nozzles to prevent nozzle clogging
- Dual control of water-level and timing for AUTOMATlC back-washing.
- Filtration precision ranges 30-75um
| Model (PP) | Treatment Capacity (m³/h) | Product Size (mm) | Inlet/Outlet Size (mm) | Waste Discharge Size (mm) | Rated Power (watts) |
|---|---|---|---|---|---|
| ED-S-PP-10/20B | 10/20 | 1090*748*772 | 110 | 63 | 550 |
| ED-S-PP-30B | 30 | 1331*898*909 | 160 | 63 | 930 |
| ED-S-PP-60B | 60 | 1516*1019*1020 | 200 | 90 | 1120 |
| ED-S-PP-100B | 100 | 1661*1362*1205 | 250 | 90 | 1650 |
| ED-S-PP-150B | 150 | 1990*1659*1340 | 315 | 110 | 1850 |

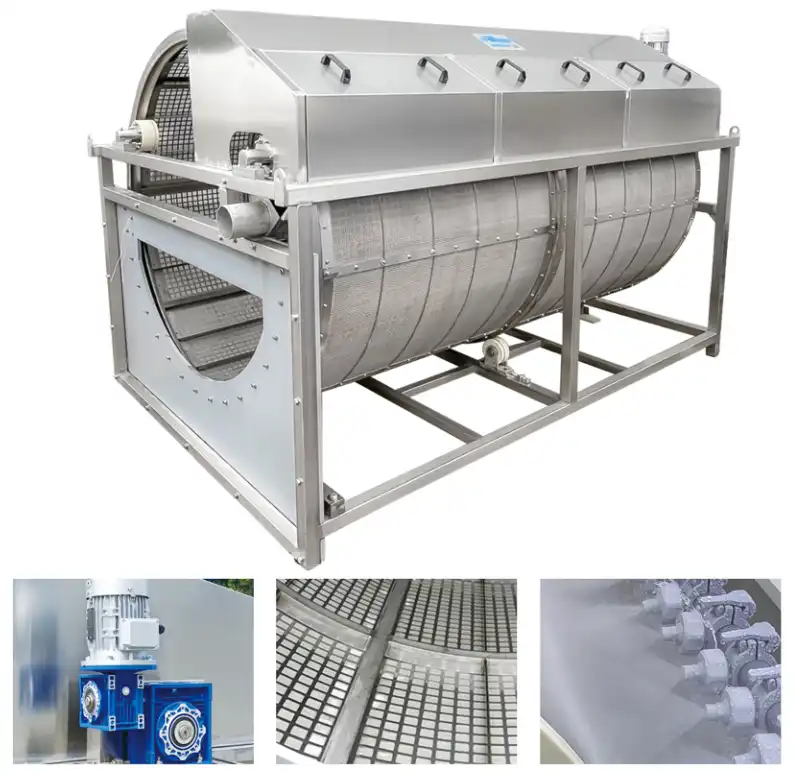

Open Type Drum Filter
- All stainless steel construction, sturdy and durable, strong corrosion resistance
- Replaceable dual-layer protection SS316L screen for easily rinsing and durable performance
- Detachable nozzles to prevent nozzle clogging
- Dual control of water-level and timing for AUTOMATIC back-washing
- Filtration precision ranges 30-75um
| Model | Treatment Capacity (m³/h) | Product Size (mm) | Waste Discharge Size (mm) | Rated Power (watts) |
|---|---|---|---|---|
| ED-316L-300B | 300 | 2310*1760*1870 | 110 | 2600 |
| ED-316L-500C | 500 | 2910*1760*1870 | 110 | 3700 |
